UM6116-5 - 2K x 8 High Speed CMOS SRAM

UMC

📥 Download Datasheet

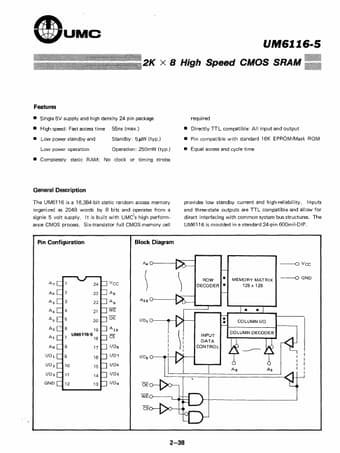

UM6116-5 Datasheet Preview — Preview of UM6116-5 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UM6116-5
Manufacturer	UMC
File Size	175.27 KB
Description	2K x 8 High Speed CMOS SRAM
Datasheet	UM6116-5-UMC.pdf

UM6116-5 Product details

Description

The UM6116 is a 16,384-bit static random access memory organized as 2048 words by 8 bits and operates from a signle 5 volt supply.

Features

Single 5V supply and high density 24 pin package.
High speed: Fast access time 55ns (max. ).
Low power standby and Standby: 5/lW (typ. ) Low power operation Operation: 250mW (typ. ).
Completely static RAM: No clock or timing strobe required.
Directly TTL compatible: All input and output.
Pin compatible with standard 16K EPROM/Mask ROM.
Equal access and cycle time General.
