QM2601S - N-Ch and P-Ch Fast Switching MOSFETs

UBIQ

The QM2601S by UBIQ is a N-Ch and P-Ch Fast Switching MOSFETs. Below is the official datasheet preview.

📥 Download Datasheet

QM2601S N-Ch and P-Ch Fast Switching MOSFETs by UBIQ - Datasheet Preview — Official preview page of the **QM2601S** N-Ch and P-Ch Fast Switching MOSFETs datasheet (UBIQ).

Datasheet Details

Part number	QM2601S
Manufacturer	UBIQ
File Size	406.62 KB
Description	N-Ch and P-Ch Fast Switching MOSFETs
Datasheet	QM2601S-UBIQ.pdf

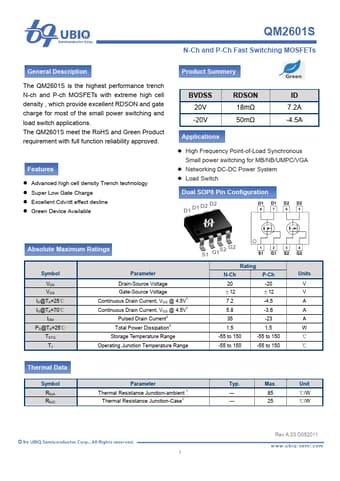

Additional preview pages of the QM2601S datasheet.

QM2601S Product details

Description

The QM2601S is the highest performance trench N-ch and P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications.

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS 20V -20V RDSON 18mΩ 50mΩ ID 7.2A -4.5A.
