QM2409G - P-Ch 20V Fast Switching MOSFETs

UBIQ

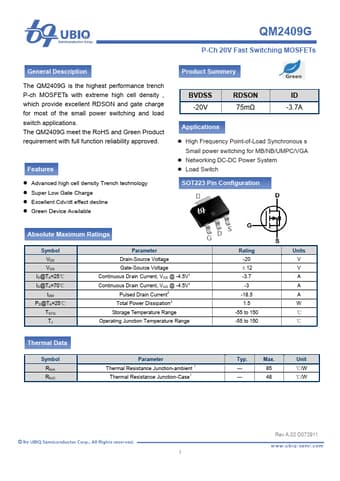

QM2409G Datasheet Preview — Preview of QM2409G PDF

Datasheet Details

Part number	QM2409G
Manufacturer	UBIQ
File Size	344.15 KB
Description	P-Ch 20V Fast Switching MOSFETs
Datasheet	QM2409G-UBIQ.pdf

QM2409G Product details

Description

The QM2409G is the highest performance trench P-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications.

Features

z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS -20V RDSON 75mΩ ID -3.7A.
