W68-X2Q12-30 - Magnetic Hydraulic Circuit Breakers

Download the W68-X2Q12-30 datasheet PDF. This datasheet also covers the W68-X2Q12-3 variant, as both devices belong to the same magnetic hydraulic circuit breakers family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Designed for the international market. UL Recognized, CSA Certified, and VDE approved.
  • Ratings to 50 amps.
  • Heavy duty #10-32 stud connections. (W9).
  • Optional 10 amp auxiliary switch.
  • Optional snap-in mounting. (W6).
  • Several delay curve options.
  • Trip-free operation. Typical Resistance and Impedance Current (Amps) 0.2 1.0 2.0 5.0 10.0 20.0 30.0 40.0 50.0 DC Resistance (Ohms) 90 1.2 0.28 0.04 0.013 0.004 0.0027 0.002 0.0015 50/60.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (W68-X2Q12-3-Tyco.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
W68-xxxxx Magnetic Hydraulic Circuit Breakers Tyco Electronics
W6810 SINGLE-CHANNEL VOICEBAND CODEC Winbond
W6810 SINGLE CHANNEL VOICECODEC Nuvoton Technology
W6811 SINGLE-CHANNEL VOICEBAND CODEC Winbond
W6811 SINGLE CHANNEL VOICECODEC Nuvoton Technology

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
W68-X2Q12-3 Magnetic Hydraulic Circuit Breakers
W68-X2Q12-10 Magnetic Hydraulic Circuit Breakers
W68-X2Q12-15 Magnetic Hydraulic Circuit Breakers
W68-X2Q12-20 Magnetic Hydraulic Circuit Breakers
W68-X2Q12-25 Magnetic Hydraulic Circuit Breakers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

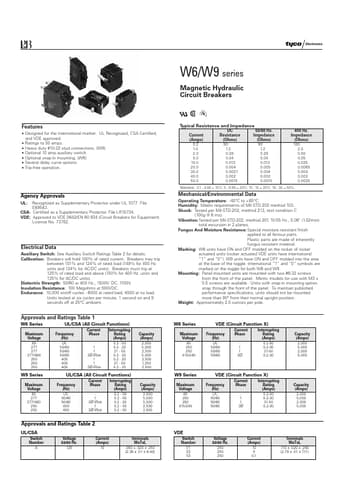

W6/W9 series Magnetic Hydraulic Circuit Breakers Features • Designed for the international market. UL Recognized, CSA Certified, and VDE approved. • Ratings to 50 amps. • Heavy duty #10-32 stud connections. (W9) • Optional 10 amp auxiliary switch. • Optional snap-in mounting. (W6) • Several delay curve options. • Trip-free operation. Typical Resistance and Impedance Current (Amps) 0.2 1.0 2.0 5.0 10.0 20.0 30.0 40.0 50.0 DC Resistance (Ohms) 90 1.2 0.28 0.04 0.013 0.004 0.0027 0.002 0.0015 50/60 Hz. Impedance (Ohms) 90 1.2 0.28 0.04 0.013 0.005 0.004 0.002 0.0015 400 Hz. Impedance (Ohms) 180 2.0 0.50 0.05 0.025 0.0065 0.004 0.003 0.0025 Tolerance: 0.1 - 4.99 ± 15%; 5 - 9.99 ± 20%; 10 - 15 ± 25%; 16 - 30 ± 50%. Agency Approvals Recognized as Supplementary Protector under UL 1077 .
