W67-A2Q12-5 - Magnetic Hydraulic Circuit Breakers

Tyco

📥 Download Datasheet

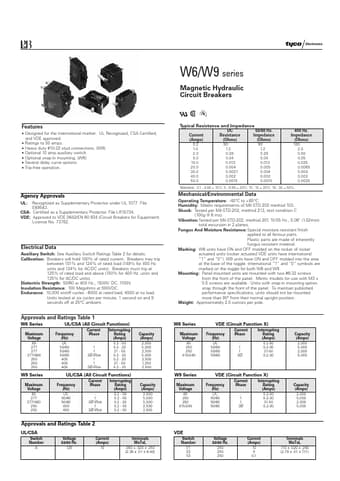

W67-A2Q12-5 Datasheet Preview — Preview of W67-A2Q12-5 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	W67-A2Q12-5
Manufacturer	Tyco
File Size	144.01 KB
Description	Magnetic Hydraulic Circuit Breakers
Datasheet	W67-A2Q12-5-Tyco.pdf

W67-A2Q12-5 Product details

Features

Designed for the international market. UL Recognized, CSA Certified, and VDE approved.
Ratings to 50 amps.
Heavy duty #10-32 stud connections. (W9).
Optional 10 amp auxiliary switch.
Optional snap-in mounting. (W6).
Several delay curve options.
Trip-free operation. Typical Resistance and Impedance Current (Amps) 0.2 1.0 2.0 5.0 10.0 20.0 30.0 40.0 50.0 DC Resistance (Ohms) 90 1.2 0.28 0.04 0.013 0.004 0.0027 0.002 0.0015 50/60.
