V23086-C1001-A402 - PC Board Relay

Product Overview

Tyco

📥 Download Datasheet

V23086-C1001-A402 PC Board Relay by Tyco - Datasheet Preview — Datasheet preview – V23086-C1001-A402

Datasheet Details

Part number	V23086-C1001-A402
Manufacturer	Tyco
File Size	61.41 KB
Description	PC Board Relay
Datasheet	V23086-C1001-A402 Datasheet
Note	This datasheet PDF includes multiple part numbers: V23086-C1001-A402, V23086-C1001-A303. Please refer to the document for exact specifications by model.

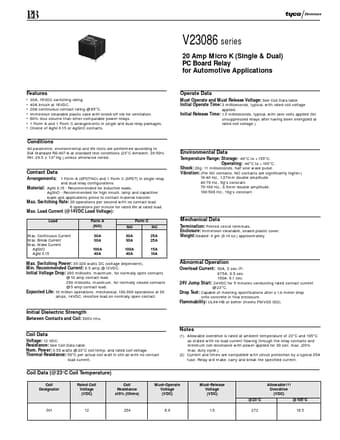

Additional preview pages of the V23086-C1001-A402 datasheet.

Product details

Features

30A, 16VDC switching rating.
40A inrush at 16VDC.
20A continuous contact rating @ 85°C.
Immersion cleanable plastic case with knock-off nib for ventilation.
60% less volume than other comparable power relays.
1 Form A and 1 Form C arrangements in single and dual relay packages.
Choice of AgNi 0.15 or AgSnO contacts. Operate Data Must Operate and Must Release Voltage: See Coil Data table. Initial Operate Time: 3 milliseconds,.
