P40P42D12P1-24, P40 Definite Purpose Magnetic Contactor

P40P42D12P1-24 Description

www.DataSheet.co.kr Catalog 1308242 Issued 3-03 (PDF Rev.5-05) P&B P30/P40 series Definite Purpose Magnetic Contactor 30/40 Ampere Full Load 40/50.

P40P42D12P1-24 Features

* AC and DC coils.
* Available with auxiliary switch.
* Variety of main contact terminals.
* For control of motors, power supplies, heating elements and lighting. Coil Data Nominal VDC 12 24 48 120 Resistance (Ohms ± 10% @ 25° C) 20.8 84 334 2,110 Must Operate
* V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: P40P42D12P1-24, P40. Please refer to the document for exact specifications by model.

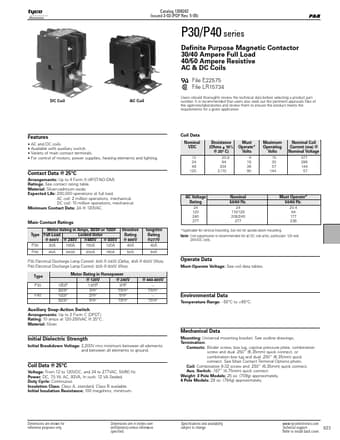

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
P40P42D12P1-24, P40
Manufacturer
Tyco
File Size
146.72 KB
Datasheet
P40_Tyco.pdf
Description
Definite Purpose Magnetic Contactor
Note
This datasheet PDF includes multiple part numbers: P40P42D12P1-24, P40.
Please refer to the document for exact specifications by model.
