P30P42D12P1-24 - Definite Purpose Magnetic Contactor

Download the P30P42D12P1-24 datasheet PDF. This datasheet also covers the P30 variant, as both devices belong to the same definite purpose magnetic contactor family and are provided as variant models within a single manufacturer datasheet.

Features

  • AC and DC coils.
  • Available with auxiliary switch.
  • Variety of main contact terminals.
  • For control of motors, power supplies, heating elements and lighting. Coil Data Nominal VDC 12 24 48 120 Resistance (Ohms ± 10% @ 25° C) 20.8 84 334 2,110 Must Operate.
  • Volts 9 18 36 90 Maximum Operating Volts 15 30 57 144 Nominal Coil Current (ma) @ Nominal Voltage 577 286 144 57 Contact Data @ 25°C Arrangements: Up to 4 Form X (4PST-NO-DM) Ratings: See contact rati.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (P30_Tyco.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
P3000AA61L SIDACtor Device Littelfuse
P3000ZL45X168 Press Pack IGBT Infineon
P3002AA SIDACtor Protection Thyristors Littelfuse
P3002AB SIDACtor Protection Thyristors Littelfuse
P3002AC SIDACtor Protection Thyristors Littelfuse

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
P30P42A12P1-120 Definite Purpose Magnetic Contactor
P30P47A12P1-120 Definite Purpose Magnetic Contactor
P30P47D12P1-24 Definite Purpose Magnetic Contactor
P30 Definite Purpose Magnetic Contactor

Full PDF Text Transcription

Click to expand full text

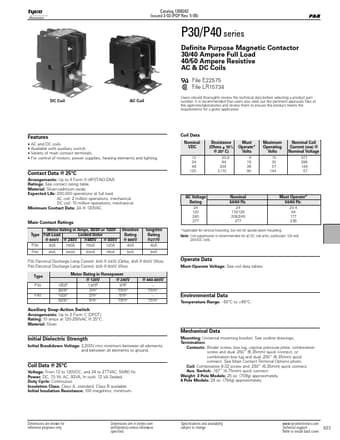

www.DataSheet.co.kr Catalog 1308242 Issued 3-03 (PDF Rev. 5-05) P&B P30/P40 series Definite Purpose Magnetic Contactor 30/40 Ampere Full Load 40/50 Ampere Resistive AC & DC Coils File E22575 File LR15734 DC Coil AC Coil Users should thoroughly review the technical data before selecting a product part number. It is recommended that users also seek out the pertinent approvals files of the agencies/laboratories and review them to ensure the product meets the requirements for a given application. Features • AC and DC coils. • Available with auxiliary switch. • Variety of main contact terminals. • For control of motors, power supplies, heating elements and lighting. Coil Data Nominal VDC 12 24 48 120 Resistance (Ohms ± 10% @ 25° C) 20.
