MAAM37000-A1 - L ow Noise GaAs MMIC Amplifier 3.5 - 7 GHz

Description

M/A-COM’s MAAM37000-A1 is a wide band, low noise, MMIC amplifier housed in a small 8-lead ceramic package.

Features

  • q q q q q q q MAAM37000-A1 V 2.00 CR-3 Low Noise Figure: 2.2 dB High Gain: 17 dB Gain Flatness: ±0.5 dB Single Supply: +4 V No External Components Required DC Decoupled RF Input and Output Small, 8-Lead Ceramic Package.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAAM-000056 RF Driver Amplifier Tyco Electronics
MAAM-000057 RF Driver Amplifier Tyco Electronics
MAAM-000060 Broadband CATV Amplifier Tyco Electronics
MAAM-000070 High Dynamic Range Amplifier Tyco Electronics
MAAM-000071 RF Driver Amplifier Tyco Electronics

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
MAAM37000 Low Noise GaAs MMIC Amplifier 3.5-7GHz
MAAM02350 Wide Band GaAs MMIC Amplifier 0.2-3.0GHz
MAAM02350-A2 Wide Band GaAs MMIC Amplifier 0.2-3.0GHz
MAAM12000 Low Noise GaAs MMIC Amplifier 1.2-1.75 GHz
MAAM12021 Low Noise Amplifier 1.5 - 1.6 GHz

Full PDF Text Transcription

Click to expand full text

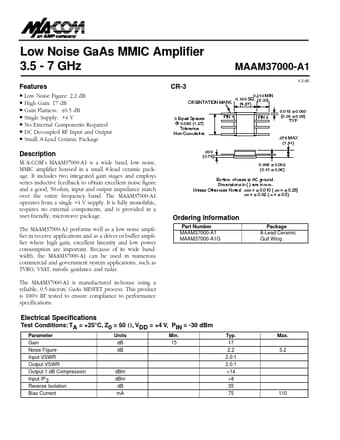

Low Noise GaAs MMIC Amplifier 3.5 - 7 GHz Features q q q q q q q MAAM37000-A1 V 2.00 CR-3 Low Noise Figure: 2.2 dB High Gain: 17 dB Gain Flatness: ±0.5 dB Single Supply: +4 V No External Components Required DC Decoupled RF Input and Output Small, 8-Lead Ceramic Package Description M/A-COM’s MAAM37000-A1 is a wide band, low noise, MMIC amplifier housed in a small 8-lead ceramic package. It includes two integrated gain stages and employs series inductive feedback to obtain excellent noise figure and a good, 50-ohm, input and output impedance match over the entire frequency band. The MAAM37000-A1 operates from a single +4 V supply. It is fully monolithic, requires no external components, and is provided in a user-friendly, microwave package.
