MA44767 Step Recovery Diodes

MA44767 Description

Step Recovery Diodes .
The MA44600 series of Step Recovery diodes is designed for use in low and moderate power multipliers with output frequencies of up to 20 GHz.

MA44767 Applications

* High Order Narrow Band Moderate Power Multipliers (MA44600 series) Comb Generators (MA43592, MA43543) High Power Circuit Tested Multiplier (MA43000 Series) Surface Mount Low Power Multipliers (MA44700 Series) Specifications Subject to Change Without Notice. M/A-COM, Inc. North America: Tel. (800)

📥 Download Datasheet

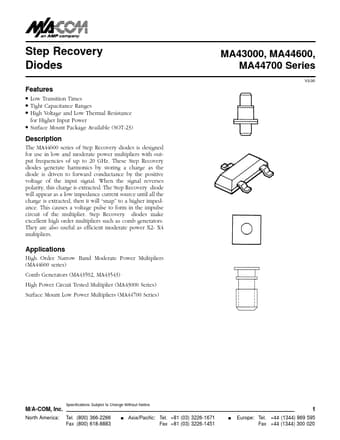

Preview of MA44767 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA44767
Manufacturer
Tyco
File Size
77.33 KB
Datasheet
MA44767_TycoElectronics.pdf
Description
Step Recovery Diodes
