T7NV1D4-05-WG-A - Miniature Power PCB Relay

Download the T7NV1D4-05-WG-A datasheet PDF. This datasheet also covers the T7N variant, as both devices belong to the same miniature power pcb relay family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (T7N_TycoElectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
T7N 10 Amp Miniature PC Board Relay Siemens
T7NS1D1-12 10 Amp Miniature PC Board Relay Siemens
T7NS1D1-24 10 Amp Miniature PC Board Relay Siemens
T7NS5D1-05 10 Amp Miniature PC Board Relay Siemens
T7NS5D1-12 10 Amp Miniature PC Board Relay Siemens

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
T7NV1D4-05-WG Miniature Power PCB Relay
T7NV1D4-06-WG Miniature Power PCB Relay
T7NV1D4-06-WG-A Miniature Power PCB Relay
T7NV1D4-09-WG Miniature Power PCB Relay
T7NV1D4-09-WG-A Miniature Power PCB Relay

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

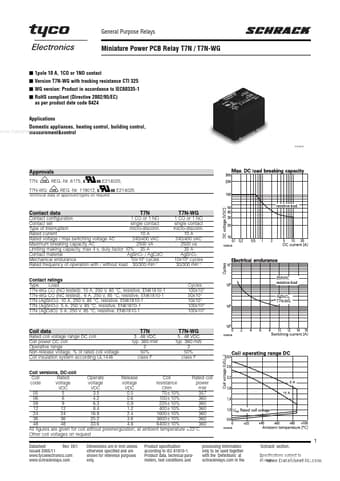

General Purpose Relays Miniature Power PCB Relay T7N / T7N-WG I 1pole 10 A, 1CO or 1NO contact I Version T7N-WG with tracking resistance CTI 325 I WG version: Product in accordance to IEC60335-1 I RoHS compliant (Directive 2002/95/EC) as per product date code 0424 Applications Domestic appliances, heating control, building control, www.DataShemet4eUas.cuoremment&control F0189-B Approvals V ZT7N: REG.-Nr. 6175, E214025; V ZT7N-WG: REG.-Nr. 119012, E214025 Technical data of approved types on request Contact data T7N Contact configuration 1 CO or 1 NO Contact set single contact Type of interruption micro-disconn. Rated current 10 A Rated voltage / max.
