SW-393 - GaAs SPST High Isolation Terminated Switch

Description

M/A-COM’s SW-393 is a GaAs monolithic SPST terminated switch in a low cost SOIC 8-lead plastic package.

The SW-393 is ideally suited for use where low power consumption and high isolation are required.

Features

  • Terminated RF Output High Isolation: 42 dB up to 2.0 GHz Single Positive Control CMOS Compatible Logic SOIC-8 Plastic Package SW-393 V4 Functional Schematic.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SW-313-PIN Matched GaAs SPDT Switch MA-COM
SW-38HT Powered Subwoofer Kenwood
SW-110-PIN GaAs SPDT Reflective Switch MA-COM
SW-180 Shake Switch Mobicon
SW-18010 Shake Switch Mobicon

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
SW-394 GaAs SPDT High Isolation Terminated Switch
SW-395 3 Volt GaAs SPDT Switch
SW-311 Match GaAs SPST Switch
SW-311-PIN Matched GaAs SPDT Switch
SW-312 GaAs SPDT Reflective Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

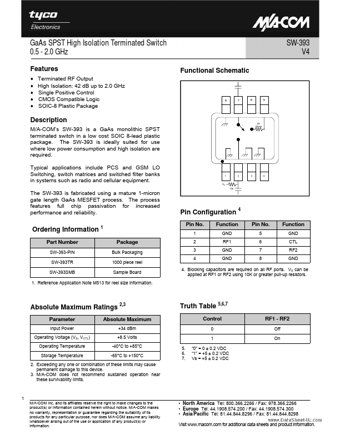

GaAs SPST High Isolation Terminated Switch 0.5 - 2.0 GHz Features • • • • • Terminated RF Output High Isolation: 42 dB up to 2.0 GHz Single Positive Control CMOS Compatible Logic SOIC-8 Plastic Package SW-393 V4 Functional Schematic Description M/A-COM’s SW-393 is a GaAs monolithic SPST terminated switch in a low cost SOIC 8-lead plastic package. The SW-393 is ideally suited for use where low power consumption and high isolation are required. Typical applications include PCS and GSM LO Switching, switch matrices and switched filter banks in systems such as radio and cellular equipment. The SW-393 is fabricated using a mature 1-micron gate length GaAs MESFET process. The process features full chip passivation for increased performance and reliability. Pin Configuration 4 Pin No.
