PD20-0010-S - Three-Way In-Phase Power Divider 25 - 1000 MHz

Description

M/A-COM’s PD20-0010-S is a Three-Way Power Divider designed to operate over a frequency of 25 - 1000 MHz.

Parameter Max.

1.

Features

  • Space Qualified version of DS-323 Designed to meet the Stringent Reliability Standards of Space Hardware 50 Ohms Nominal Impedance 35 dB Midband Isolation 1.2:1 Input VSWR FP-3.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PD20-0010-S Three-Way In-Phase Power Divider 25 - 1000 MHz Tyco
PD200 Singleturn Potentiometers CONTELEC
PD200-1A-MB Singleturn Potentiometers CONTELEC
PD200-1B Singleturn Potentiometers CONTELEC
PD200-1B-MB Singleturn Potentiometers CONTELEC

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

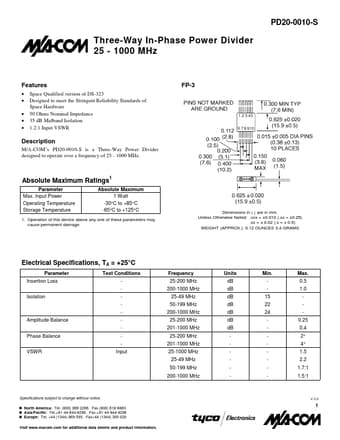

PD20-0010-S Three-Way In-Phase Power Divider 25 - 1000 MHz Features • • • • • Space Qualified version of DS-323 Designed to meet the Stringent Reliability Standards of Space Hardware 50 Ohms Nominal Impedance 35 dB Midband Isolation 1.2:1 Input VSWR FP-3 Description M/A-COM’s PD20-0010-S is a Three-Way Power Divider designed to operate over a frequency of 25 - 1000 MHz. Absolute Maximum Ratings1 Parameter Max. Input Power Operating Temperature Storage Temperature Absolute Maximum 1 Watt -30°C to +85°C -65°C to +125°C 1. Operation of this device above any one of these parameters may cause permanent damage. Dimensions in ( ) are in mm. Unless Otherwise Noted: .xxx = ±0.010 (.xx = ±0.25) .xx = ± 0.02 (.x = ± 0.5) WEIGHT (APPROX.): 0.12 OUNCES 3.
