Part number	MASWSS0121
Manufacturer	Tyco Electronics
File Size	224.53 KB
Description	SPDT High Isolation Terminated Switch
Datasheet	MASWSS0121 Datasheet

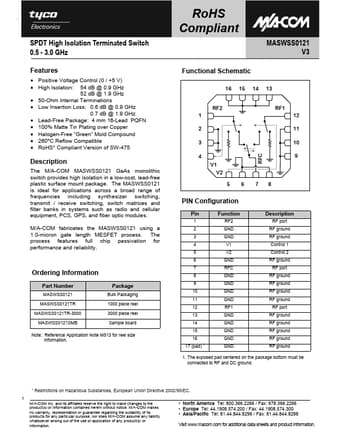

Additional preview pages of the MASWSS0121 datasheet.

Product details

Description

The M/A-COM MASWSS0121 GaAs monolithic switch provides high isolation in a low-cost, lead-free plastic surface mount package.

Features

Positive Voltage Control (0 / +5 V).
High Isolation: 54 dB @ 0.9 GHz 52 dB @ 1.9 GHz.
50-Ohm Internal Terminations.
Low Insertion Loss: 0.6 dB @ 0.9 GHz 0.7 dB @ 1.9 GHz.
Lead-Free Package: 4 mm 16-Lead PQFN.
100% Matte Tin Plating over Copper.
Halogen-Free “Green” Mold Compound.
260°C Reflow Compatible.
RoHS.
Compliant Version of SW-475 RF2 1 2 3 4 V1 V2 5 6 7 8 RFC RF1 12 11 10 9.
