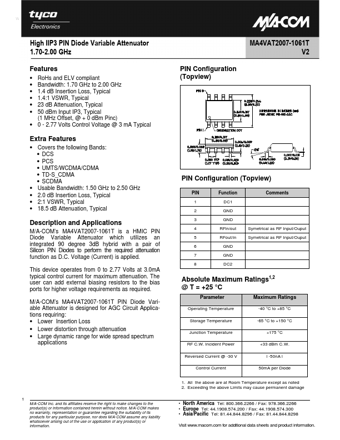

MA4VAT2007-1061T - High IIP3 PIN Diode Variable Attenuator

Description

M/A-COM’s MA4VAT2007-1061T is a HMIC PIN Diode Variable Attenuator which utilizes an integrated 90 degree 3dB hybrid with a pair of Silicon PIN Diodes to perform the required attenuation function as D.C.

Voltage (Current) is applied.

Features

  • RoHs and ELV compliant Bandwidth: 1.70 GHz to 2.00 GHz 1.4 dB Insertion Loss, Typical 1.4:1 VSWR, Typical 23 dB Attenuation, Typical 50 dBm Input IP3, Typical (1 MHz Offset, @ + 0 dBm Pinc).
  • 0 - 2.77 Volts Control Voltage @ 3 mA Typical MA4VAT2007-1061T V2 PIN Configuration (Topview) Extra Features.
  • Covers the following Bands:.
  • DCS.
  • PCS.
  • UMTS/WCDMA/CDMA.
  • TD-S_CDMA.
  • SCDMA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MA4000 Silicon planar type Panasonic
MA4000N Silicon planar type Panasonic Semiconductor
MA40016 Ceramic Packaged Silicon Schottky Mixer Diodes MA-COM
MA40017 Ceramic Packaged Silicon Schottky Mixer Diodes MA-COM
MA40018 Ceramic Packaged Silicon Schottky Mixer Diodes MA-COM

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
MA4VAT2000-1277T HMIC PIN Diode Variable Attenuator
MA4VAT2004-1061T High IIP3 PIN Diode Variable Attenuator
MA4VAT900-1277T HMIC PIN Diode Variable Attenuator
MA4VAT904-1061T High IIP3 PIN Diode Variable Attenuator
MA4VAT907-1061T High IIP3 PIN Diode Variable Attenuator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
www.DataSheet4U.com High IIP3 PIN Diode Variable Attenuator 1.70-2.00 GHz Features • • • • • • RoHs and ELV compliant Bandwidth: 1.70 GHz to 2.00 GHz 1.4 dB Insertion Loss, Typical 1.4:1 VSWR, Typical 23 dB Attenuation, Typical 50 dBm Input IP3, Typical (1 MHz Offset, @ + 0 dBm Pinc) • 0 - 2.77 Volts Control Voltage @ 3 mA Typical MA4VAT2007-1061T V2 PIN Configuration (Topview) Extra Features • Covers the following Bands: • DCS • PCS • UMTS/WCDMA/CDMA • TD-S_CDMA • SCDMA • Usable Bandwidth: 1.50 GHz to 2.50 GHz • 2.0 dB Insertion Loss, Typical • 2:1 VSWR, Typical • 18.
