MA4IQP900L-1291T - I/Q Modulator/Demodulator

Product Overview

Tyco Electronics

Datasheet Details

Part number	MA4IQP900L-1291T
Manufacturer	Tyco Electronics
File Size	177.17 KB
Description	I/Q Modulator/Demodulator
Datasheet	MA4IQP900L-1291T Datasheet

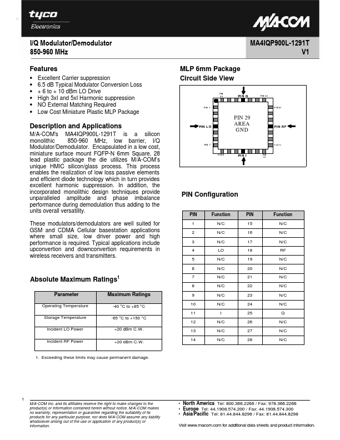

Additional preview pages of the MA4IQP900L-1291T datasheet.

Product details

Description

and Applications M/A-COM's MA4IQP900L-1291T is a silicon monolithic 850-960 MHz, low barrier, I/Q Modulator/Demodulator.Encapsulated in a low cost, miniature surface mount FQFP-N 6mm Square, 28 lead plastic package the die utilizes M/A-COM’s unique HMIC silicon/glass process.This process enables the realization of low loss passive elements and efficient diode technology which in turn provides excellent harmonic suppression.In addition, the incorporated monolithic design techniques provide unp

Features

Excellent Carrier suppression 6.5 dB Typical Modulator Conversion Loss + 6 to + 10 dBm LO Drive High 3xI and 5xI Harmonic suppression NO External Matching Required Low Cost Miniature Plastic MLP Package MA4IQP900L-1291T V1 MLP 6mm Package Circuit Side View PIN 28 PI N Q PIN 2 2 PIN 1 P I N 21.
