ETC1-1T-75 - E-Series RF 1:1 Transformer 40 - 1000 MHz

Tyco Electronics

📥 Download Datasheet

ETC1-1T-75 Datasheet Preview — Preview of ETC1-1T-75 PDF

Datasheet Details

Part number	ETC1-1T-75
Manufacturer	Tyco Electronics
File Size	29.03 KB
Description	E-Series RF 1:1 Transformer 40 - 1000 MHz
Datasheet	ETC1-1T-75_TycoElectronics.pdf

ETC1-1T-75 Product details

Features

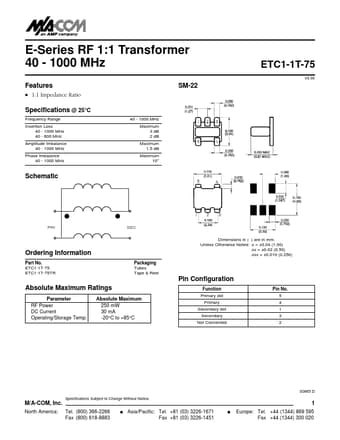

q ETC1-1T-75 V3.00 SM-22 1:1 Impedance Ratio Speciﬁcations @ 25°C Frequency Range Insertion Loss 40 - 1000 MHz 40 - 600 MHz Amplitude Imbalance 40 - 1000 MHz Phase Imbalance 40 - 1000 MHz 40 - 1000 MHz Maximum 3 dB 2 dB Maximum 1.5 dB Maximum 10° Schematic PRI SEC Dimensions in ( ) are in mm. Unless Otherwise Noted: . x = ±0.04 (1.00) . xx = ±0.02 (0.50) . xxx = ±0.010 (0.250) Packaging Tubes Tape & Reel Ordering Information Part No. ETC1-1T-75 ETC1-1T-75TR Pin Conﬁguration Absolute Maximu.
