DS1976 - Shielded Drum Core Inductors

Features

  • High energy storage and low resistance. Ideal for DC-DC buck or boost conversion. Reliable surface mounting. Drop-in replacements for industry prevalent competitor series. Robust temperature deflection to prevent damage during solder reflow. Tape and Reel mechanical specifications available upon request. Operating temperature range -40°C to +85°C. DS6630 L7 µH 1.0 1.5 2.2 3.3 3.9 4.7 5.0 5.6 6.8 7.5 8.2 10 12 15 18 22 27 33 39 47 56 68 82 100 120 150 180 220 270 330 390 470 680 1000 1500 2200.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DS1971 256-Bit EEPROM iButton Maxim Integrated
DS1971 256-Bit EEPROM iButton Dallas Semiconducotr
DS1972 1024-Bit EEPROM iButton Maxim Integrated Products
DS1973 4Kb EEPROM iButton Maxim Integrated
DS1973 4-kbit EEPROM iButton Dallas Semiconducotr

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
DS1137 Shielded Drum Core Inductors
DS1145 Shielded Drum Core Inductors
DS1351 Shielded Drum Core Inductors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

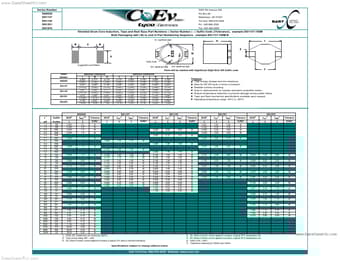

www.DataSheet4U.com Series Number DS6630 DS1137 DS1145 DS1351 DS1976 3003 9th Avenue SW PO Box 50 Watertown, SD 57201 Toll free: 888-978-2638 Ph: 605-886-3326 Fax: 605-886-8995 Shielded Drum Core Inductors, Tape and Reel Easy Part Numbers: ( Series Number ) - ( Suffix Code )(Tolerance), example DS1137-150M Bulk Packaging add (-B) to end of Part Numbering Sequence. example DS1137-150M-B 1st significant digit H Z W L B C B A Suffix Code Suggested Land Pattern 3rd significant digit XXX 2nd significant digit Parts will be marked with Significant Digit Dots OR Suffix code Series Number DS6630 DS1137 DS1145 DS1351 DS1976 Maximum Dimensions L W H 0.260" 0.177" 0.115" [ 6.60 ] [ 4.50 ] [ 2.92 ] 0.421" 0.323" 0.146" [ 10.70 ] [ 8.20 ] [ 3.70 ] 0.421" 0.323" 0.177" [ 10.70 ] [ 8.20 ] [ 4.
