DP52-0005 Low Cost SMT Dual Band Diplexer

Tyco Electronics

Description

Low Cost SMT Dual Band Diplexer 824 - 960 / 1850 - 1990 MHz (AMPS/PCS) 880 - 960 / 1700 - 1900 MHz (GSM/DCS) SOT-26 .
M/A-COM’s DP52-0005 is an IC-based monolithic Diplexer in a low cost SOT-26 plastic package.

📥 Download Datasheet

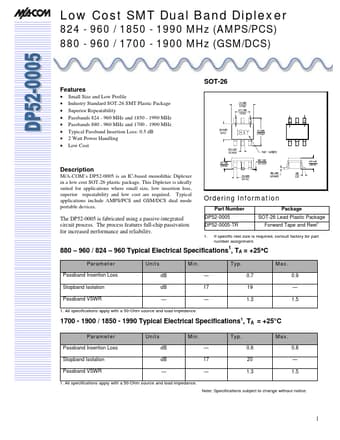

DP52-0005 Datasheet Preview — Preview of DP52-0005 PDF

Datasheet Specifications

Part number: DP52-0005
Manufacturer: Tyco Electronics
File Size: 53.87 KB
Datasheet: DP52-0005_TycoElectronics.pdf
Description: Low Cost SMT Dual Band Diplexer

Features

* Small Size and Low Profile Industry Standard SOT-26 SMT Plastic Package Superior Repeatability Passbands 824 - 960 MHz and 1850 - 1990 MHz Passbands 880 - 960 MHz and 1700 - 1900 MHz Typical Passband Insertion Loss: 0.5

Applications

* where small size, low insertion loss, superior repeatability and low cost are required. Typical applications include AMPS/PCS and GSM/DCS dual mode portable devices. Ordering Information Part Number DP52-0005 DP52-0005-TR 1. Package SOT-26 Lead Plastic Package Forward Tape and Reel 1 The DP52-000
