ANCC-154A - PCS and WLAN Omni Antennas

Description

M/A-COM’s Omni antennas are vertically polarized collinear arrays utilizing a patented printed circuit technology for the radiating elements.

These rugged antennas are housed in UV stable ultrasonically bonded polycarbonate radomes.

Features

  • q q q q q q Light Weight - Slim Profile Patented Printed Circuit Technology Watertight Ultrasonic and O-Ring Sealed Groundplane Independent Stainless Steel Hardware Multiple pigtail lengths, radome colors and connector options available.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ANC2 CMOS Gate Array AMI
ANC4 CMOS Gate Array AMI
ANC6 CMOS Gate Array AMI
ANCG12G44SAA129 Chip Multilayer Antennas Murata
ANCM11G57SAA089 Chip Multilayer Antennas Murata

Other Datasheets by Tyco Electronics (now TE Connectivity)

Part Number Description
ANCC-151A PCS and WLAN Omni Antennas
ANCC-152A PCS and WLAN Omni Antennas
ANCC-153A PCS and WLAN Omni Antennas
ANCC-155A PCS and WLAN Omni Antennas
ANCC-156A PCS and WLAN Omni Antennas

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

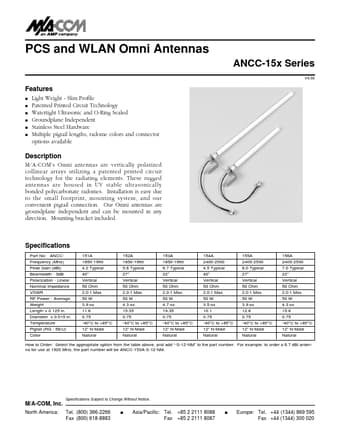

PCS and WLAN Omni Antennas ANCC-15x Series V4.00 Features q q q q q q Light Weight - Slim Profile Patented Printed Circuit Technology Watertight Ultrasonic and O-Ring Sealed Groundplane Independent Stainless Steel Hardware Multiple pigtail lengths, radome colors and connector options available Description M/A-COM’s Omni antennas are vertically polarized collinear arrays utilizing a patented printed circuit technology for the radiating elements. These rugged antennas are housed in UV stable ultrasonically bonded polycarbonate radomes. Installation is easy due to the small footprint, mounting system, and our convenient pigtail connection. Our Omni antennas are groundplane independent and can be mounted in any direction. Mounting bracket included.
