TF2302A N-Channel MOSFET

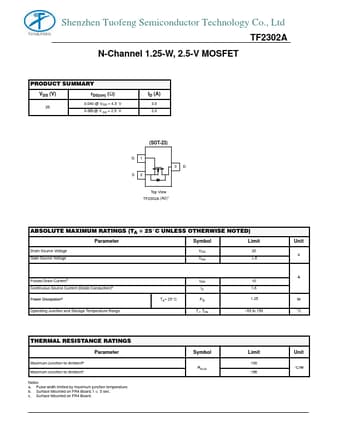

Shenzhen Tuofeng Semiconductor Technology Co., Ltd TF2302A N-Channel 1.25-W, 2.5-V MOSFET PRODUCT SUMMARY VDS (V) rDS(on) (W) 0.040 @ VGS = 4.5 V 20 0.060 @ V GS = 2.5 V ID (A) 3.0 2.0 (SOT-23) G1 S2 3D Top View TF2302A (A2) ABSOLUTE MAXIMUM RATINGS (TA = 25_C UNLESS OTHERWISE NOTED) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage VDS VGS 20 "8 Pulsed Drain Currenta Continuous Source Current (Diode Conduction)b Power Dissipationb Operating Junction and Stora.
