TQP3M9007 - High Linearity LNA Gain Block

Datasheet Summary

Description

The TQP3M9007 is a high linearity low noise gain block amplifier in a low-cost surface-mount package.

At 1.9 GHz, the amplifier typically provides 13 dB gain, +41 dBm OIP3, and 1.3 dB Noise Figure while drawing 125 mA current.

Features

  • 100-4000 MHz 13 dB Gain @ 1.9 GHz 1.3 dB Noise Figure @ 1.9 GHz +41 dBm Output IP3 +23.6 dBm P1dB 50 Ohm Cascadable Gain Block Unconditionally Stable High Input Power Capability +5V Single Supply, 125 mA Current SOT-89 Package Functional Block Diagram GND 4 1 RF IN 2 GND 3 RF OUT General.

📥 Download Datasheet

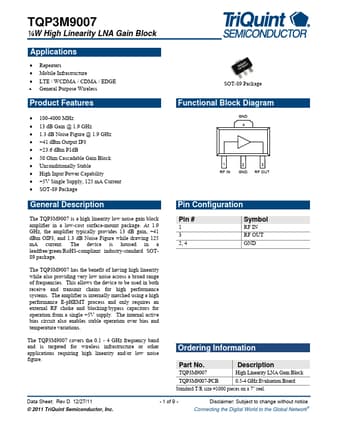

Datasheet preview – TQP3M9007

Datasheet Details

Part number TQP3M9007
Manufacturer TriQuint Semiconductor
File Size 1.39 MB
Description High Linearity LNA Gain Block
Datasheet download datasheet TQP3M9007 Datasheet
Additional preview pages of the TQP3M9007 datasheet.

📁 Similar Datasheet

Other Datasheets by TriQuint Semiconductor

Full PDF Text Transcription

Click to expand full text
TQP3M9007 ¼W High Linearity LNA Gain Block Applications • • • • Repeaters Mobile Infrastructure LTE / WCDMA / CDMA / EDGE General Purpose Wireless SOT-89 Package Product Features • • • • • • • • • • 100-4000 MHz 13 dB Gain @ 1.9 GHz 1.3 dB Noise Figure @ 1.9 GHz +41 dBm Output IP3 +23.6 dBm P1dB 50 Ohm Cascadable Gain Block Unconditionally Stable High Input Power Capability +5V Single Supply, 125 mA Current SOT-89 Package Functional Block Diagram GND 4 1 RF IN 2 GND 3 RF OUT General Description The TQP3M9007 is a high linearity low noise gain block amplifier in a low-cost surface-mount package. At 1.9 GHz, the amplifier typically provides 13 dB gain, +41 dBm OIP3, and 1.3 dB Noise Figure while drawing 125 mA current.
