TGC4704-FC - 38 - 77 GHz Doubler and Medium Power Amplifier

TriQuint Semiconductor

📥 Download Datasheet

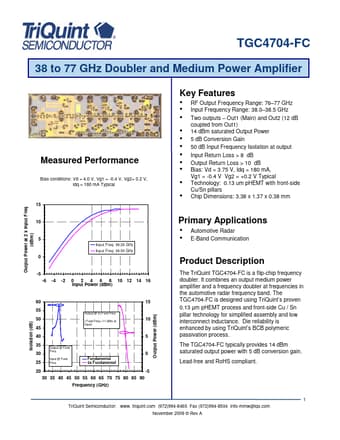

TGC4704-FC Datasheet Preview — Preview of TGC4704-FC PDF

Datasheet Details

Part number	TGC4704-FC
Manufacturer	TriQuint Semiconductor
File Size	515.13 KB
Description	38 - 77 GHz Doubler and Medium Power Amplifier
Datasheet	TGC4704-FC_TriQuintSemiconductor.pdf

TGC4704-FC Product details

Description

-6 -4 -2 0 2 4 6 8 Input Power (dBm) 10 12 14 16 -5 60 55 50 Isolation (dB) 45 40 35 30 25 20 30 35 40 45 50 55 60 65 70 75 80 85 90 Frequency (GHz) Output @ Fund Freq Input @ Fund Freq Output @ 2x Fund Freq ( Fund Freq:+11 dBm at Input) 15 Output Power (dBm) 10 5 The TriQuint TGC4704-FC is a flip-chip frequency doubler.It combines an output medium power amplifier and a frequency doubler at frequencies in the automotive radar frequency band.The TGC4704-FC is designed using TriQuint’s pro

Features

Output Power at 2 x Input Freq (dBm) 15 10 Measured Performance Bias conditions: Vd = 4.0 V, Vg1 = -0.4 V, Vg2= 0.2 V, Idq = 180 mA Typical RF Output Frequency Range: 76.
77 GHz Input Frequency Range: 38.0.
38.5 GHz Two outputs.
Out1 (Main) and Out2 (12 dB coupled from Out1) 14 dBm saturated Output Power 5 dB Conversion Gain 50 dB Input Frequency Isolation at out.
