TXC04201B - DS1MX7 Device DS1 Mapper

Download the TXC04201B datasheet PDF (TXC-04201B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ds1mx7 device ds1 mapper.

Description

The DS1MX7 is a seven-channel byte-synchronous and asynchronous DS1 mapper.

Both SONET and SDH mappings are provided per Bellcore GR-253-CORE (VT1.5) and ITU-T G.707 3-96 (TU-11).

Features

  • Seven independent 1.544 Mbit/s DS1 mappers.
  • Single byte-parallel Telecom Bus @ 6.48 MHz (28 Slots) or 19.44 MHz (84 Slots).
  • Floating VT1.5 byte-synchronous mapping with signaling only for use with or without a slip buffer.
  • Asynchronous mapping for DS1.
  • SONET mapping (VT1.5) or SDH mapping (TU-11 in AU-3 or TU-11 in TUG-3).
  • AMI, B8ZS or NRZ codec for DS1s.
  • Serial I/O for control of DS1 line interface transceivers or framers.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TXC-04201B_Transwitch.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TXC04201B
Manufacturer Transwitch
File Size 2.23 MB
Description DS1MX7 Device DS1 Mapper
Datasheet download datasheet TXC04201B Datasheet

📁 Similar Datasheet

  • TXC100 - Single chip OOK/ASK/FSK Transmitter IC (RFM)
  • TXC101 - Multi-channel High data rate Programmable (RFM)
  • TXC102 - Multi-channel High tae rate Programmable (RFM)
Other Datasheets by Transwitch
  • TXC04212 - Ethemet Into STS-12/STM-4 SONET/SDH Mapper
  • TXC04216 - E1Mx16 Device E1 Mapper 16-Channel
  • TXC04218 - 8-Channel Dual Bus Mapper
  • TXC04222 - 28-Channel Dual Bus High Density Mapper
  • TXC04226 - Ethernet Into STS-3/STM-1 SONET/SDH Mapper
  • TXC04228 - E1Mx28 Device DS1 Mapper 28-Channel
  • TXC04236 - OC-3 Ethemet Over SONET Mapper
  • TXC04246 - OC-3 Ethemet Over SONET/SDH Mapper

Full PDF Text Transcription

Click to expand full text

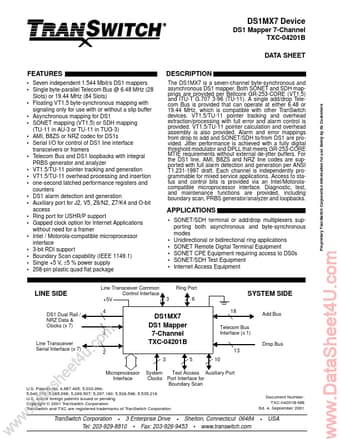

DS1MX7 Device DS1 Mapper 7-Channel TXC-04201B DATA SHEET FEATURES • Seven independent 1.544 Mbit/s DS1 mappers • Single byte-parallel Telecom Bus @ 6.48 MHz (28 Slots) or 19.44 MHz (84 Slots) • Floating VT1.5 byte-synchronous mapping with signaling only for use with or without a slip buffer • Asynchronous mapping for DS1 • SONET mapping (VT1.5) or SDH mapping (TU-11 in AU-3 or TU-11 in TUG-3) • AMI, B8ZS or NRZ codec for DS1s • Serial I/O for control of DS1 line interface transceivers or framers • Telecom Bus and DS1 loopbacks with integral PRBS generator and analyzer • VT1.5/TU-11 pointer tracking and generation • VT1.
