LS3FN-14280-CVC - DC Motor

Download the LS3FN-14280-CVC datasheet PDF (LS3FN-12300-CVC included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for dc motor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LS3FN-12300-CVC-Transmotec.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LS3FN-14280-CVC
Manufacturer Transmotec
File Size 137.01 KB
Description DC Motor
Datasheet download datasheet LS3FN-14280-CVC Datasheet

📁 Similar Datasheet

  • LS300A - Long Stroke 3 Jaw Chucks with Acme Serrated Master Jaws (Royal Workholding)
  • LS301 - HIGH PERFORMANCE OPERATIONAL AMPLIFIERS (SGS)
  • LS301 - Super Beta (Micross)
  • LS302 - Super Beta (Micross)
  • LS303 - Super Beta (Micross)
  • LS307 - FREQUENCY COMPENSATED OPERATIONAL AMPLIFIERS (SGS-Ates)
  • LS310 - Ultra Match (Micross)
  • LS310 - DUAL NPN TRANSISTORS (LINEAR SYSTEMS)
  • LS311 - Ultra Match (Micross)
  • LS311 - Ultra Match (Micross)
Other Datasheets by Transmotec

Full PDF Text Transcription

Click to expand full text

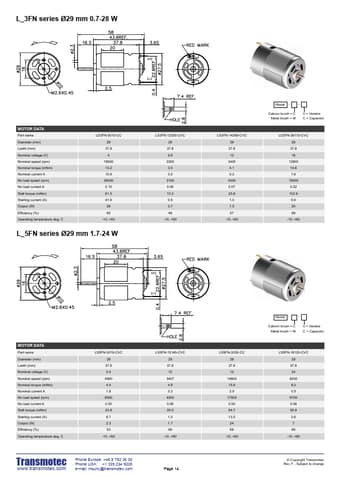

L_3FN s eries Ø29 mm 0.7-28 W MODEL NO. DESIGNATIONS MOTOR DATA Part name Diameter (mm) Lenth (mm) Nominal voltage (V) Nominal speed (rpm) Nominal torque (mNm) Nominal current A No load speed (rpm) No load current A Stall torque (mNm) Starting current (A) Output (W) Efficiency (%) Operating temperature deg. C LD3FN-5015-CC 29 37.8 4 19900 13.2 10.8 25000 2.10 61.5 41.9 28 65 -10..+60 L_5FN series Ø29 mm 1.7-24 W LS3FN-12300-CVC 29 37.8 9.6 2300 3.0 0.2 3100 0.06 13.3 0.5 0.7 49 -10..+60 LS3FN-14280-CVC 29 37.8 12 3400 4.1 0.2 4300 0.07 23.8 1.0 1.5 57 -10..+60 Model - - Cabron brush = C Metal brush = M V = Varistor C = Capacitor LD3FN-26110-CVC 29 37.8 18 12800 14.6 1.6 15000 0.22 102.9 9.9 20 69 -10..+60 MODEL NO.
