270-14200-CV - DC Motor

Datasheet Details

Part number	270-14200-CV
Manufacturer	Transmotec
File Size	140.79 KB
Description	DC Motor
Datasheet	270-14200-CV Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2700SM78CAN	POWER BUS VOLTAGE SUPPRESSOR	ProTek
2708AF	BU2708AF	NXP Semiconductors
270954B	70.0 MHz SAW Filter	ITF
270KD05JX	Varistor	Micro Commercial Components
270KD05NX	Varistor	Micro Commercial Components

Other Datasheets by Transmotec

Part Number	Description
270-09450-CV	DC Motor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

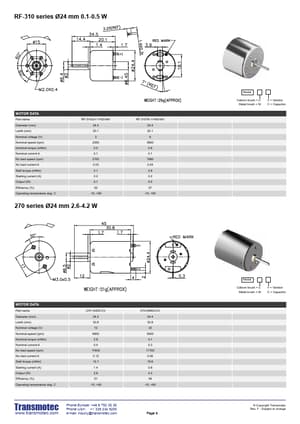

RF-310 series Ø24 mm 0.1-0.5 W MODEL NO. DESIGNATIONS MOTOR DATA Part name Diameter (mm) Lenth (mm) Nominal voltage (V) Nominal speed (rpm) Nominal torque (mNm) Nominal current A No load speed (rpm) No load current A Stall torque (mNm) Starting current (A) Output (W) Efficiency (%) Operating temperature deg. C RF-310CA-11420-MV 24.4 20.1 3 2000 0.5 0.1 2700 0.03 2.1 0.2 0.1 52 -10..+60 270 series Ø24 mm 2.6-4.2 W RF-310TA-11400-MV 24.4 20.1 6 5800 0.8 0.1 7680 0.04 2.8 0.2 0.5 57 -10..+60 MODEL NO. DESIGNATIONS MOTOR DATA Part name Diameter (mm) Lenth (mm) Nominal voltage (V) Nominal speed (rpm) Nominal torque (mNm) Nominal current A No load speed (rpm) No load current A Stall torque (mNm) Starting current (A) Output (W) Efficiency (%) Operating temperature deg. C 270-14200-CV 24.
