LTCV10.7MHY - CERAMIC FILTER

Download the LTCV10.7MHY datasheet PDF (LTCA10.7MHY included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ceramic filter.

Features

  • Very low profile. Ultra thin thickness 1.5mm.
  • Automatic mounting is possible.
  • Very small volume and weight.
  • Reflow is possible PART NUMBER LTCA10.7MHY LTCA10.7MJ LTCA10.7MS3 LTCA10.7MS2 LTCA10.7MA5 LTCV10.7MHY LTCV10.7MJ LTCV10.7MS3 LTCV10.7MS2 LTCV10.7MA5 LTCV10.7MA20 LTCV10.7MA19 LTCS10.7MS3 LTCS10.7MS2 LTCS10.7MA5 LTCS10.7MA20 3dB BAND WIDTH (kHz) 110 ± 30 150 ± 40 180 ± 40 230 ± 50 280 ± 50 110 ± 30 150 ± 40 180 ± 40 230 ± 50 280 ± 50 330 ± 50 350 min. 180 ± 40 230 ±.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LTCA10.7MHY-transko.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LTCV10.7MHY
Manufacturer Transko
File Size 343.30 KB
Description CERAMIC FILTER
Datasheet download datasheet LTCV10.7MHY Datasheet

📁 Similar Datasheet

  • LTCV10.7MHY - Ceramic Filter and Discriminator (Chequers Electronic)
  • LTCV10.7MHY - Filters Unit (HUNAN HORIZON ELECTRONICS)
  • LTCV10.7M - SMD Ceramic Filters (Token)
  • LTCV10.7MA19 - Ceramic Filter and Discriminator (Chequers Electronic)
  • LTCV10.7MA19 - Filters Unit (HUNAN HORIZON ELECTRONICS)
  • LTCV10.7MA20 - Ceramic Filter and Discriminator (Chequers Electronic)
  • LTCV10.7MA20 - Filters Unit (HUNAN HORIZON ELECTRONICS)
  • LTCV10.7MA5 - CERAMIC FILTER (Yantai Cn Electronics)
  • LTCV10.7MA5 - Ceramic Filter and Discriminator (Chequers Electronic)
  • LTCV10.7MA5 - Filters Unit (HUNAN HORIZON ELECTRONICS)
Other Datasheets by Transko

Full PDF Text Transcription

Click to expand full text

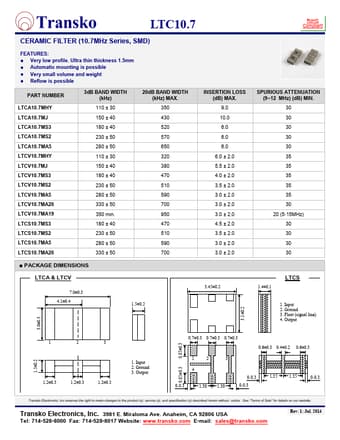

LTC10.7 CERAMIC FILTER (10.7MHz Series, SMD) FEATURES:  Very low profile. Ultra thin thickness 1.5mm  Automatic mounting is possible  Very small volume and weight  Reflow is possible PART NUMBER LTCA10.7MHY LTCA10.7MJ LTCA10.7MS3 LTCA10.7MS2 LTCA10.7MA5 LTCV10.7MHY LTCV10.7MJ LTCV10.7MS3 LTCV10.7MS2 LTCV10.7MA5 LTCV10.7MA20 LTCV10.7MA19 LTCS10.7MS3 LTCS10.7MS2 LTCS10.7MA5 LTCS10.7MA20 3dB BAND WIDTH (kHz) 110 ± 30 150 ± 40 180 ± 40 230 ± 50 280 ± 50 110 ± 30 150 ± 40 180 ± 40 230 ± 50 280 ± 50 330 ± 50 350 min. 180 ± 40 230 ± 50 280 ± 50 330 ± 50 20dB BAND WIDTH (kHz) MAX. 350 430 520 570 650 320 380 470 510 590 700 950 470 510 590 700 ■ PACKAGE DIMENSIONS LTCA & LTCV 7.0±0.3 4.1±0.4 1.5±0.2 INSERTION LOSS (dB) MAX. 9.0 10.0 6.0 6.0 6.0 6.0 ± 2.0 5.5 ± 2.0 4.0 ± 2.0 3.5 ± 2.
