TDOTG242-xxxx, TDOTG242-00BC - Single Chip Host/Peripheral Controller

The TDOTG242-xxxx by Transdimension is a Single Chip Host/Peripheral Controller. Below is the official datasheet preview.

📥 Download Datasheet

TDOTG242-xxxx Single Chip Host/Peripheral Controller by Transdimension - Datasheet Preview — Official preview page of the **TDOTG242-xxxx** Single Chip Host/Peripheral Controller datasheet (Transdimension).

Datasheet Details

Part number	TDOTG242-xxxx, TDOTG242-00BC
Manufacturer	Transdimension
File Size	450.96 KB
Description	Single Chip Host/Peripheral Controller
Datasheet	TDOTG242-00BC_Transdimension.pdf
Note	This datasheet PDF includes multiple part numbers: TDOTG242-xxxx, TDOTG242-00BC. Please refer to the document for exact specifications by model.

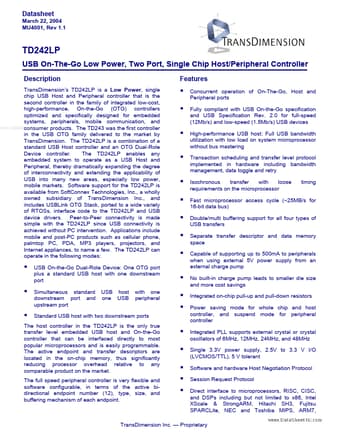

Additional preview pages of the TDOTG242-xxxx datasheet.

TDOTG242-xxxx Product details

Description

TransDimension’s TD242LP is a Low Power, single chip USB Host and Peripheral controller that is the second controller in the family of integrated low-cost, high-performance, On-the-Go (OTG) controllers optimized and specifically designed for embedded systems, peripherals, mobile communication, and www.DataSheet4U.com consumer products.

Features

Concurrent operation of On-The-Go, Host and Peripheral ports Fully compliant with USB On-the-Go specification and USB Specification Rev. 2.0 for full-speed (12Mb/s) and low-speed (1.5Mb/s) USB devices High-performance USB host: Full USB bandwidth utilization with low load on system microprocessor without bus mastering Transaction scheduling and transfer level protocol implemented in hardware including bandwidth management, data toggle and retry Isochronous transfer with loose requirements on the.
