TS6001 2.5V Voltage Reference

Touchstone Semiconductor

TS6001 Description

www.DataSheet.co.kr TS6001 A 7ppm/°C, 0.08% Precision +2.5V Voltage Reference in SOT23 .
The TS6001 is a 3-terminal, series-mode 2.

TS6001 Features

*           Improved Electrical Performance over MAX6025 Initial Accuracy: 0.08% (max)
* TS6001A 0.16% (max)
* TS6001B Temperature Coefficient: 7ppm/°C (max)
* TS6001A 10ppm/°C (max)
* TS6001B Quiescent Supply Current: 35μA (max) Low Supply Current Change with

TS6001 Applications

* The TS6001 is fully specified over the -40°C to +85°C temperature range and is available in a 3-pin SOT23 package. APPLICATIONS Battery-Operated Equipment Data Acquisition Systems Hand-Held Equipment Smart Industrial Transmitters Industrial and Process-Control Systems Precision 3V/5V Systems Hard-

📥 Download Datasheet

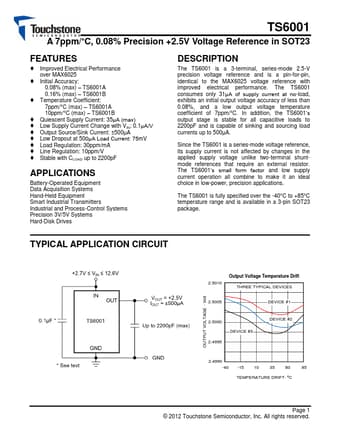

TS6001 Datasheet Preview — Preview of TS6001 PDF

Datasheet Details

Part number: TS6001
Manufacturer: Touchstone Semiconductor
File Size: 0.97 MB
Datasheet: TS6001_TouchstoneSemiconductor.pdf
Description: 2.5V Voltage Reference
