TS1102 - SOT23 Precision Current-Sense Amplifier

Name: TS1102
SKU: TS1102-1304422

Touchstone Semiconductor

📥 Download Datasheet

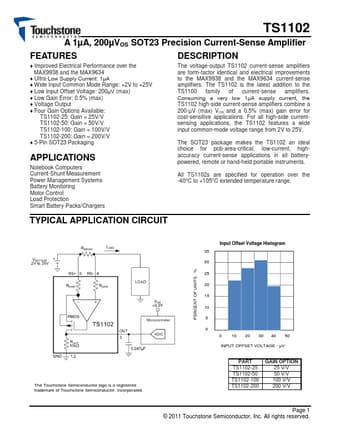

TS1102 Datasheet Preview — Preview of TS1102 PDF

Datasheet Details

Part number	TS1102
Manufacturer	Touchstone Semiconductor
File Size	720.75 KB
Description	SOT23 Precision Current-Sense Amplifier
Datasheet	TS1102-TouchstoneSemiconductor.pdf

TS1102 Product details

Description

The voltage-output TS1102 current-sense amplifiers are form-factor identical and electrical improvements to the MAX9938 and the MAX9634 current-sense amplifiers.

Features

Improved Electrical Performance over the MAX9938 and the MAX9634.
Ultra-Low Supply Current: 1μA.
Wide Input Common Mode Range: +2V to +25V.
Low Input Offset Voltage: 200μV (max).
Low Gain Error: 0.5% (max).
Voltage Output.
Four Gain Options Available: TS1102-25: Gain = 25V/V TS1102-50: Gain = 50V/V TS1102-100: Gain = 100V/V TS1102-200: Gain = 200V/V.
5-Pin SOT23 Packaging.
