MIW203x - (MIW2000 Series) 3-4 Watts 4 :1 Wide Input Range DC/DC Converters

Product Overview

Total Power International

Part number	MIW203x
Manufacturer	Total Power International
File Size	311.05 KB
Description	(MIW2000 Series) 3-4 Watts 4 :1 Wide Input Range DC/DC Converters
Datasheet	MIW203x Datasheet
Note	This datasheet PDF includes multiple part numbers: MIW203x, MIW2000. Please refer to the document for exact specifications by model.

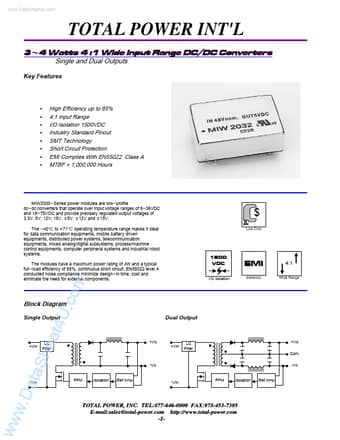

Additional preview pages of the MIW203x datasheet.

y y y y y y y y High Efficiency up to 85% 4:1 Input Range I/O Isolation 1500VDC Industry Standard Pinout SMT Technology Short Circuit Protection EMI Complies With EN55022 Class A MTBF > 1,000,000 Hours MIW2000-Series power modules are low-profile dc-dc converters that operate over input voltage ranges of 9-36VDC and 18-75VDC and provide precisely regulated output voltages of 3.3V, 5V, 12V, 15V, {5V, {12V and {15V. The -40] to +71] operating temperature range makes it ideal for data communicat.
