TTA009 - Silicon PNP Epitaxial Type Bipolar Transistors

Features

  • (1) Low collector saturation voltage : VCE(sat) = -0.5 V (max) (IC = -1 A, IB = -100 mA) (2) High-speed switching : tstg = 300 ns (typ. ) (IC = -1 A) 3. Packaging and Internal Circuit TTA009 New PW-Mold 1. Base 2. Collector (Heatsink) 3. Emitter Start of commercial production 2015-04 1 2015-06-19 Rev.1.0 TTA009 4. Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Rating Unit Collector-base voltage VCBO -80 V Collector-emitter volt.

📥 Download Datasheet

Datasheet Details

Part number TTA009
Manufacturer Toshiba
File Size 219.19 KB
Description Silicon PNP Epitaxial Type Bipolar Transistors
Datasheet download datasheet TTA009 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TTA0001 PNP Transistor INCHANGE
TTA0001 Silicon PNP Transistor Toshiba Semiconductor
TTA0002 PNP Transistor INCHANGE
TTA0002 Silicon PNP Transistor Toshiba Semiconductor
TTA007 Silicon PNP Transistor Toshiba Semiconductor

Other Datasheets by Toshiba

Part Number Description
TTA003 Silicon PNP Epitaxial Type Bipolar Transistors
TTA004 Silicon PNP Epitaxial Type Transistor
TTA004B Silicon PNP Epitaxial Type Bipolar Transistors
TTA005 Silicon PNP Epitaxial Type Bipolar Transistors
TTA006B Silicon PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

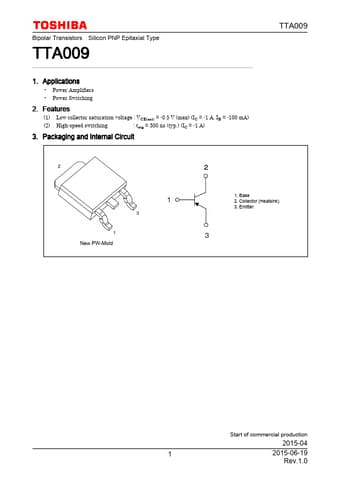

Bipolar Transistors Silicon PNP Epitaxial Type TTA009 1. Applications • Power Amplifiers • Power Switching 2. Features (1) Low collector saturation voltage : VCE(sat) = -0.5 V (max) (IC = -1 A, IB = -100 mA) (2) High-speed switching : tstg = 300 ns (typ.) (IC = -1 A) 3. Packaging and Internal Circuit TTA009 New PW-Mold 1. Base 2. Collector (Heatsink) 3. Emitter Start of commercial production 2015-04 1 2015-06-19 Rev.1.0 TTA009 4. Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 ) Characteristics Symbol Rating Unit Collector-base voltage VCBO -80 V Collector-emitter voltage VCEO -80 V Emitter-base voltage VEBO -7 Collector current (DC) (Note 1) IC -3 A Collector current (pulsed) (Note 1) ICP -5 A Base current IB -1.
