TD62783APG - 8-ch High-Voltage Source Driver

Toshiba

Datasheet Details

Part number	TD62783APG
Manufacturer	Toshiba
File Size	190.08 KB
Description	8-ch High-Voltage Source Driver
Datasheet	TD62783APG_Toshiba.pdf

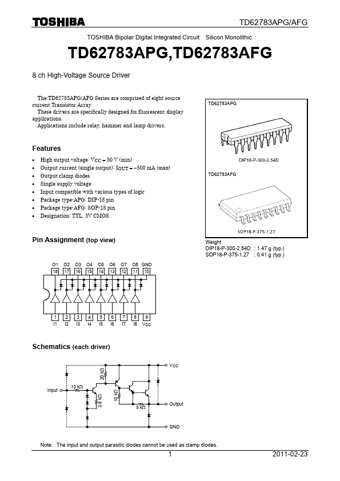

High output voltage: VCC = 50 V (min).
Output current (single output): IOUT =.
500 mA (max).
Output clamp diodes.
Single supply voltage.
Input compatible with various types of logic.
Package type-APG: DIP-18 pin.
Package type-AFG: SOP-18 pin.
Designation: TTL, 5V CMOS TD62783APG TD62783AFG Pin Assignment (top view) O1 O2 O3 O4 O5 O6 O7 O8 GND 18 17 16 15 14 13 12 11 10 Weight DIP18-P-300-2.54D : 1.47 g (typ. ) SOP.
