TCD2905D - TOSHIBA CCD Image Sensor CCD (charge coupled device)

Toshiba

Datasheet Details

Part number	TCD2905D
Manufacturer	Toshiba
File Size	262.92 KB
Description	TOSHIBA CCD Image Sensor CCD (charge coupled device)
Datasheet	TCD2905D_ToshibaSemiconductor.pdf

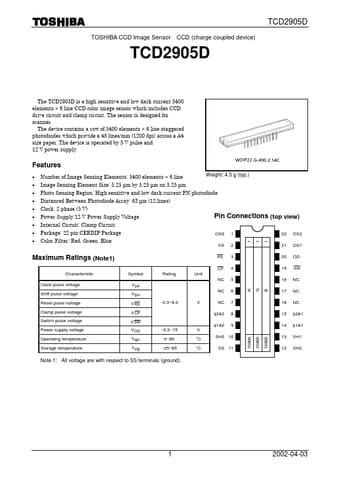

Number of Image Sensing Elements: 5400 elements × 6 line Image Sensing Element Size: 5.25 µm by 5.25 µm on 5.25 µm Photo Sensing Region: High sensitive and low dark current PN photodiode Distanced Between Photodiode Array: 63 µm (12 lines) Clock: 2 phase (5 V) Power Supply:12 V Power Supply Voltage Internal Circuit: Clamp Circuit Package: 22 pin CERDIP Package Color Filter: Red, Green, Blue OS3 SS RS CP Weight: 4.5 g (typ. ) Pin Connections.
