TC358743XBG - Mobile Peripheral

Features

  • HDMI-RX Interface.
  • HDMI 1.4 - Video Formats Support (Up to 1080P @60fps).
  • RGB, YCbCr444: 24-bpp @60fps.
  • YCbCr422 24-bpp @60fps - Audio Supports.
  • Internal Audio PLL to track N/CTS value transmitted by the ACR packet. - 3D Support - Support HDCP (optional) - DDC Support - EDID Support.
  • Release A, Revision 1 (Feb 9, 2000).
  • First 128 byte (EDID 1.3 structure).
  • First E-EDID Extension: 128 bytes of CEA Extension version 3 (specified in CEA-861-D).
  • Embedded.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TC3582 Two lights Charger ETC
TC3582B Multi-Charger SIKEWEI
TC3582DA Multi Charger FUMAN ELECTRONICS
TC3586 Universal charger FUMAN ELECTRONICS
TC3588 Universal charger FUMAN ELECTRONICS

Other Datasheets by Toshiba

Part Number Description
TC358743AXBG Mobile Peripheral
TC358746AXBG Mobile Peripheral
TC358748XBG Mobile Peripheral
TC358749XBG Mobile Peripheral
TC358762XBG Mobile Peripheral

Full PDF Text Transcription

Click to expand full text

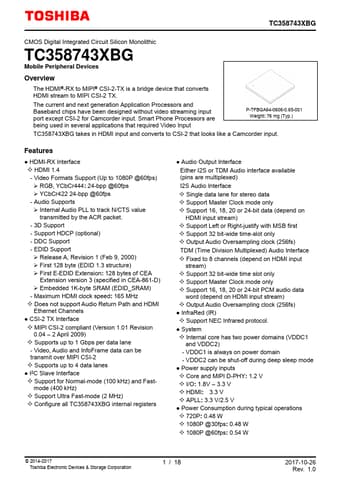

TC358743XBG CMOS Digital Integrated Circuit Silicon Monolithic TC358743XBG Mobile Peripheral Devices Overview The HDMI®-RX to MIPI® CSI-2-TX is a bridge device that converts HDMI stream to MIPI CSI-2 TX. The current and next generation Application Processors and Baseband chips have been designed without video streaming input port except CSI-2 for Camcorder input. Smart Phone Processors are being used in several applications that required Video Input P-TFBGA64-0606-0.65-001 Weight: 76 mg (Typ.) TC358743XBG takes in HDMI input and converts to CSI-2 that looks like a Camcorder input. Features ● HDMI-RX Interface  HDMI 1.
