TB67S215FTAG - PWM method CLOCK-IN Bipolar stepping motor driver

Features

  • P-WQFN36-0606-0.50－002 Weight:0.14(g) The TB67S215FTAG can operate a single bipolar stepping motor. PWM method current feedback control. Operational in Full, Half, and Quarter step resolutions. Uses low on-resistance MOSFETs for output stage. High voltage and large current. (For specification, please refer to the absolute maximum ratings and operation ranges. ) Error detection circuits (Thermal Shutdown(TSD), Over current shutdown(ISD), and Power-on reset(POR)) The built-in VCC regulator allows.

📥 Download Datasheet

Datasheet Details

Part number TB67S215FTAG
Manufacturer Toshiba
File Size 579.96 KB
Description PWM method CLOCK-IN Bipolar stepping motor driver
Datasheet download datasheet TB67S215FTAG Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TB605 6.0A Single-Phase Silicon Bridge Rectifier TAITRON
TB605G (TB605G - TB610G) 6.0A Glass Passivated Bridge Rectifier TAITRON
TB61 6.0A Single-Phase Silicon Bridge Rectifier TAITRON
TB610 6.0A Single-Phase Silicon Bridge Rectifier TAITRON
TB610G (TB605G - TB610G) 6.0A Glass Passivated Bridge Rectifier TAITRON

Other Datasheets by Toshiba

Part Number Description
TB67S213FTAG PWM method PHASE-IN Bipolar stepping motor driver
TB67S209FTG CLOCK-in controlled Bipolar Stepping Motor Driver
TB67S249FTG Active Gain Control Clock-in control Bipolar stepping motor driver
TB67S261FTG CLOCK-in controlled Bipolar Stepping Motor Driver
TB67S265FTG 8bit Serial controlled bipolar stepping motor driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

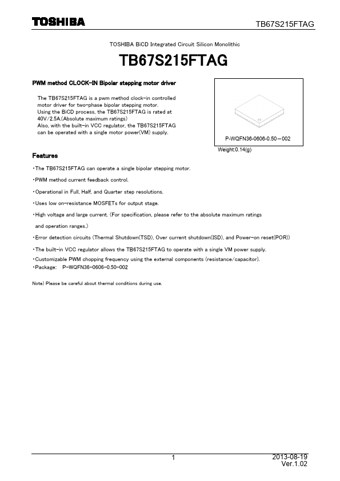

TOSHIBA BiCD Integrated Circuit Silicon Monolithic TB67S215FTAG TB67S215FTAG PWM method CLOCK-IN Bipolar stepping motor driver The TB67S215FTAG is a pwm method clock-in controlled motor driver for two-phase bipolar stepping motor. Using the BiCD process, the TB67S215FTAG is rated at 40V/2.5A.(Absolute maximum ratings) Also, with the built-in VCC regulator, the TB67S215FTAG can be operated with a single motor power(VM) supply. Features P-WQFN36-0606-0.50－002 Weight:0.14(g) The TB67S215FTAG can operate a single bipolar stepping motor. PWM method current feedback control. Operational in Full, Half, and Quarter step resolutions. Uses low on-resistance MOSFETs for output stage. High voltage and large current.
