TB62262FTG - CLOCK-in controlled Bipolar Stepping Motor Driver

Features

  • BiCD process integrated monolithic IC. Capable of controlling 1 bipolar stepping motor. PWM controlled constant-current drive. Allows full, half, quarter step operation. Low on-resistance (High + Low side=0.8Ω(typ. )) MOSFET output stage. High voltage and current (For specification, please refer to absolute maximum ratings and operation ranges) Error detection (TSD/ISD) signal output function Built-in error detection circuits (Thermal shutdown (TSD), over-current shutdown (ISD), and power-on rese.

📥 Download Datasheet

Datasheet Details

Part number TB62262FTG
Manufacturer Toshiba
File Size 761.52 KB
Description CLOCK-in controlled Bipolar Stepping Motor Driver
Datasheet download datasheet TB62262FTG Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TB62201AFG Dual-Stepping Motor Driver IC Toshiba Semiconductor
TB62202AFG Dual-Stepping Motor Driver IC Toshiba Semiconductor
TB62206FG BiCD PWM 2-Phase Bipolar Stepping Motor Driver Toshiba Semiconductor
TB62209FG Stepping Motor Driver IC Toshiba Semiconductor
TB62 6.0A Single-Phase Silicon Bridge Rectifier TAITRON

Other Datasheets by Toshiba

Part Number Description
TB62262FTAG CLK-in controlled Bipolar Stepping Motor Driver
TB62261FTAG PHASE-in controlled Bipolar Stepping Motor Driver
TB62261FTG PHASE-in controlled Bipolar Stepping Motor Driver
TB62269FTAG PWM method CLK-IN bipolar stepping motor driver
TB62269FTG PWM method CLK-IN bipolar stepping motor driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

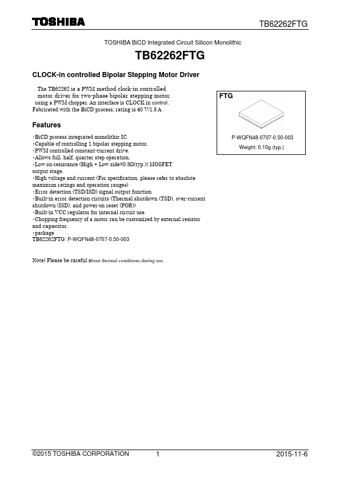

TB62262FTG TOSHIBA BiCD Integrated Circuit Silicon Monolithic TB62262FTG CLOCK-in controlled Bipolar Stepping Motor Driver The TB62262 is a PWM method clock-in controlled motor driver for two-phase bipolar stepping motor. using a PWM chopper. An interface is CLOCK in control. Fabricated with the BiCD process, rating is 40 V/1.8 A . Features BiCD process integrated monolithic IC. Capable of controlling 1 bipolar stepping motor. PWM controlled constant-current drive. Allows full, half, quarter step operation. Low on-resistance (High + Low side=0.8Ω(typ.)) MOSFET output stage.
