TA8187AFN - 1.5V DUAL FM IF

Product Overview

Toshiba

📥 Download Datasheet

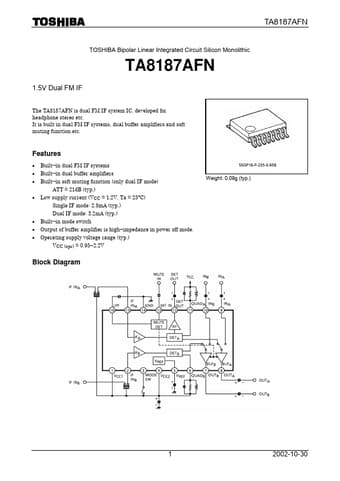

TA8187AFN 1.5V DUAL FM IF by Toshiba - Datasheet Preview — Datasheet preview – TA8187AFN

Datasheet Details

Part number	TA8187AFN
Manufacturer	Toshiba
File Size	900.02 KB
Description	1.5V DUAL FM IF
Datasheet	TA8187AFN Datasheet
Additional preview pages of the TA8187AFN datasheet.

Product details

Features

Built.
in dual FM IF systems.
Built.
in dual buffer amplifiers.
Built.
in soft muting function (only dual IF mode) ATT = 21dB (typ. ).
Low supply current (VCC = 1.2V, Ta = 25°C) Single IF mode: 2.8mA (typ. ) Dual IF mode: 3.2mA (typ. ).
Built.
in mode switch.
Output of buffer amplifier is high.
impedance in power off mode.
Operating supply voltage range (typ. ) VCC (opr) = 0.95~2.2V Weight: 0.09g (typ. ) Block Diagram 1 2002-1.
