TA8002S - 5V VOLTAGE REGULATOR WITH RESET TIMER

Toshiba

📥 Download Datasheet

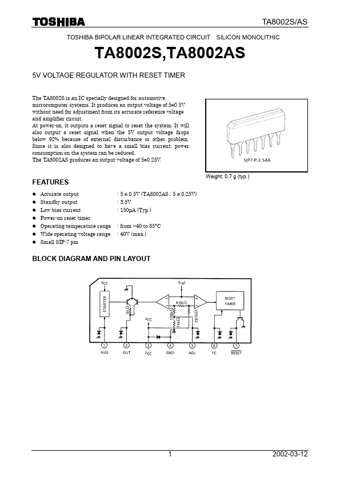

TA8002S Datasheet Preview — Preview of TA8002S PDF

Datasheet Details

Part number	TA8002S
Manufacturer	Toshiba
File Size	193.97 KB
Description	5V VOLTAGE REGULATOR WITH RESET TIMER
Datasheet	TA8002S_Toshiba.pdf

TA8002S Product details

Description

TA8002S/AS PIN No.1 2 3 4 5 SYMBOL DESCRIPTION BIAS OUT VCC GND Power supply starting pin.The starting current is supplied through a resistor to which the input voltage is applied.The output current from this starting current is as follows : IOUT (OUT Pin) ≥HFE× (VIN 0.7) / (200+R1) (mA) where R1 is the external resistance attached to Bias Pin (kΩ) .

Features

l Accurate output l Standby output l Low bias current l Power-on reset timer l Operating temperature range l Wide operating voltage range l Small SIP-7 pin : 5 ± 0.5V (TA8002AS : 5 ± 0.25V) : 3.5V : 150µA (Typ. ) : from.
40 to 85°C : 40V (max. ) Weight: 0.7 g (typ. ) BLOCK.
