TA7368F, TA7368 AUDIO POWER AMPLIFIER

TA7368F Description

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic TA7368P,TA7368F TA7368P / F Audio Power Amplifier The TA7368P and TA7368F are suitable.

TA7368F Features

* Very few external parts (only three capacitors)
* Low quiescent current: ICCQ = 6.6mA (typ. ) (VCC = 6V)
* Output power TA7368P : Pout = 720mW (typ. ) (VCC = 6V, RL = 4Ω, THD = 10%) TA7368P / F : Pout = 450mW (typ. ) (VCC = 6V, RL = 8Ω, THD = 10%)
* Voltage gain: GV = 40dB (typ. )

TA7368F Applications

* (computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc. ). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high quality and/or reliability or a malfunction or failure of which m

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TA7368F, TA7368. Please refer to the document for exact specifications by model.

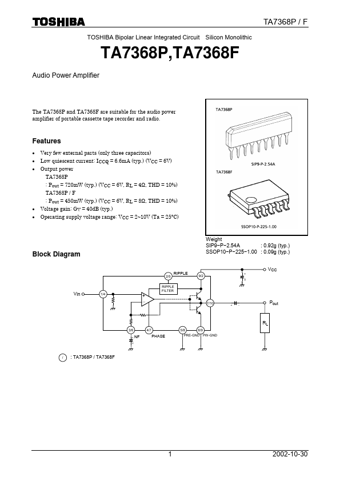

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TA7368F, TA7368
Manufacturer
Toshiba ↗
File Size
374.02 KB
Datasheet
TA7368_Toshiba.pdf
Description
AUDIO POWER AMPLIFIER
Note
This datasheet PDF includes multiple part numbers: TA7368F, TA7368.
Please refer to the document for exact specifications by model.
