S2054 Silicon NPN Transistor

S2054 Description

: SILICON NPN TRIPLE DIFFUSED MESA TYPE COLOR TV HORIZONTAL OUTPUT APPLICATIONS, .

S2054 Features

* . High Voltage . Low Saturation Voltage . High Speed VCES=1500V VCE(sat)=4V(Typ. ) tf=0.7/ts(Typ. ) Built-in Damper Type. Glass Passivated Base-Collector Junction. Unit in mm 1S0MAX. 03.6±Q2 1.5 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC SYMBOL Collector-Emitter Voltage Emitter-Base Voltage VCES

📥 Download Datasheet

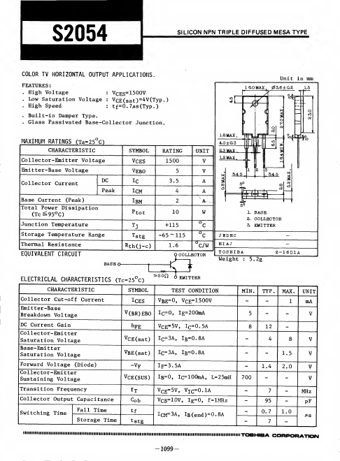

Preview of S2054 PDF
