RN4904 Silicon PNP/NPN Epitaxial Type Transistors

Toshiba

Description

RN4904 Bipolar Transistors Silicon PNP/NPN Epitaxial Type (PCT Process)(Bias Resistor built-in Transistor) RN4904 1.Applications * Switching .

📥 Download Datasheet

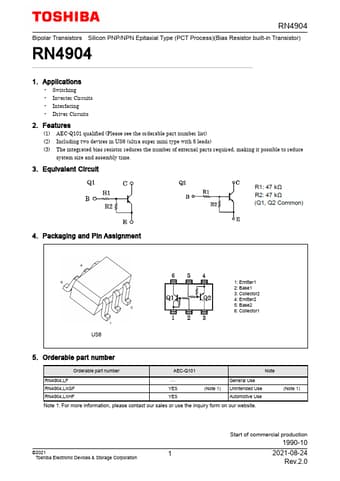

RN4904 Datasheet Preview — Preview of RN4904 PDF

Datasheet Specifications

Part number: RN4904
Manufacturer: Toshiba ↗
File Size: 419.52 KB
Datasheet: RN4904-Toshiba.pdf
Description: Silicon PNP/NPN Epitaxial Type Transistors

Features

* (1) AEC-Q101 qualified (Please see the orderable part number list) (2) Including two devices in US6 (ultra super mini type with 6 leads) (3) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. 3. Equivalent Circuit

Applications

* Switching
* Inverter Circuits
* Interfacing
