RN1103, RN1101 Silicon NPN Epitaxial Type Transistors

RN1103 Description

RN1101 to RN1106 Bipolar Transistors Silicon NPN Epitaxial Type (PCT Process)(Bias Resistor built-in Transistor) RN1101/02/03/04/05/06 1.Applications.

RN1103 Features

* (1) AEC-Q101 qualified (Please see the orderable part number list) (2) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. (3) Toshiba offers transistors with a wide range of resistance to accommodate various circuit

RN1103 Applications

* Switching
* Inverter Circuits
* Interfacing

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RN1103, RN1101. Please refer to the document for exact specifications by model.

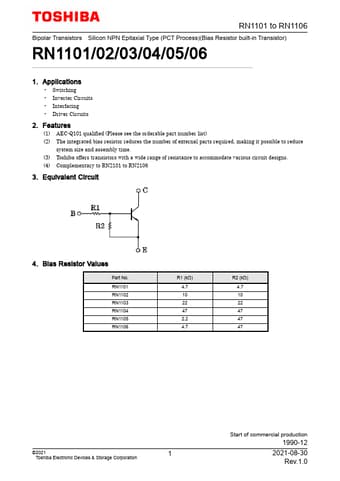

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RN1103, RN1101
Manufacturer
Toshiba ↗
File Size
879.54 KB
Datasheet
RN1101-Toshiba.pdf
Description
Silicon NPN Epitaxial Type Transistors
Note
This datasheet PDF includes multiple part numbers: RN1103, RN1101.
Please refer to the document for exact specifications by model.
