M2GZ47 BI-DIRECTIONAL TRIODE THYRISTOR

M2GZ47 Description

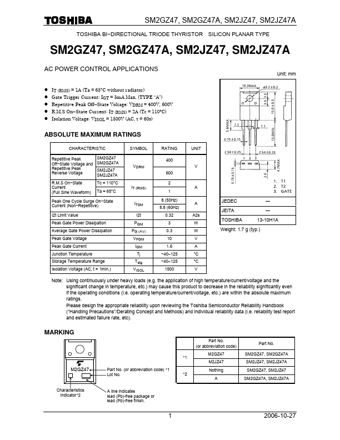

SM2GZ47, SM2GZ47A, SM2JZ47, SM2JZ47A TOSHIBA BI *DIRECTIONAL TRIODE THYRISTOR SILICON PLANAR TYPE SM2GZ47, SM2GZ47A, SM2JZ47, SM2JZ47A AC POWE.

M2GZ47 Applications

* Unit: mm z IT (RMS) = 1A (Ta = 65°C without radiator) z Gate Trigger Current: IGT = 5mA Max. (TYPE “A”) z Repetitive Peak Off
* State Voltage: VDRM = 400V, 600V z R. M. S On
* State Current: IT (RMS) = 2A (Tc = 110°C) z Isolation Voltage: VISOL = 1500V (AC, t = 60s) ABSOLUTE MAXIMUM RAT
