C5254 Datasheet - Toshiba

C5254 2SC5254

TOSHIBA Transistor Silicon NPN Epitaxial Planar Type 2SC5254 2SC5254 VHF~UHF Band Low Noise Amplifier Applications Unit: mm Low noise figure: NF = 1.5dB (f = 2 GHz) High gain: Gain = 8.5dB (f = 2 GHz) Maximum Ratings (Ta = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector power dissipation Junction temperature Storage temperature range Symbol VCBO VCEO VEBO IC IB PC Tj Tstg Rating 15 7 1.5 40 2.

C5254 Datasheet (125.86 KB)

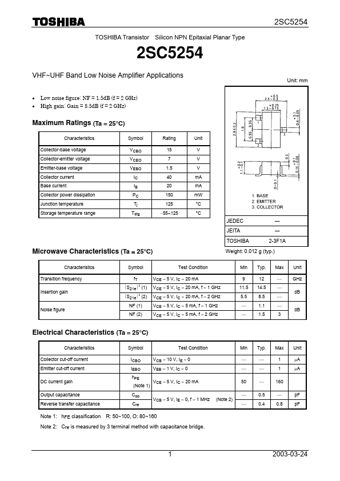

Preview of C5254 PDF
C5254 Datasheet Preview Page 2 C5254 Datasheet Preview Page 3

Datasheet Details

Part number:

C5254

Manufacturer:

Toshiba ↗

File Size:

125.86 KB

Description:

2sc5254.
