C3963 - 2SC3963

C3963 Description

TOSHIBA Transistor Silicon NPN Triple Diffused Type (PCT Process) 2SC3963 2SC3963 High-Voltage General Amplifier Applications Color TV Class B Sound.

C3963 Applications

* Color TV Class B Sound Output Applications Unit: mm
* High voltage: VCEO = 160 V Absolute Maximum Ratings (Tc = 25°C) Characteristics Symbol Rating Unit Collector-base voltage VCBO 200 V Collector-emitter voltage VCEO 160 V Emitter-base voltage VEBO 5 V Collector current IC 20

📥 Download Datasheet

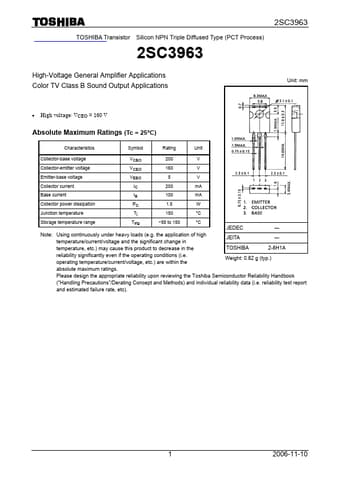

Preview of C3963 PDF
datasheet Preview Page 2 datasheet Preview Page 3
