C2655 Silicon NPN Transistor

C2655 Description

2SC2655 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) 2SC2655 Power Amplifier Applications Power Switching Applications Industrial Ap.

C2655 Applications

* Power Switching Applications Industrial Applications Unit: mm
* Low saturation voltage: VCE (sat) = 0.5 V (max) (IC = 1 A)
* High collector power dissipation: PC = 900 mW
* High-speed switching: tstg = 1.0 μs (typ. )
* Complementary to 2SA1020. Absolute Maximum Rati

📥 Download Datasheet

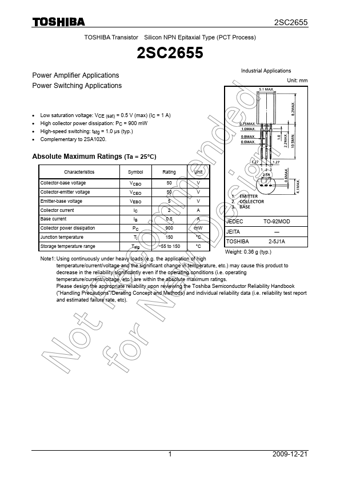

Preview of C2655 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C2655
Manufacturer
Toshiba ↗
File Size
148.31 KB
Datasheet
C2655-Toshiba.pdf
Description
Silicon NPN Transistor
