74HCT245D - Octal Bus Transceiver

Toshiba

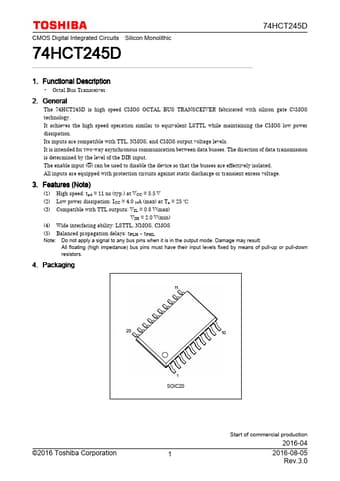

The 74HCT245D by Toshiba is a Octal Bus Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

74HCT245D Octal Bus Transceiver by Toshiba - Datasheet Preview — Official preview page of the **74HCT245D** Octal Bus Transceiver datasheet (Toshiba).

Datasheet Details

Part number	74HCT245D
Manufacturer	Toshiba
File Size	185.63 KB
Description	Octal Bus Transceiver
Datasheet	74HCT245D-Toshiba.pdf
Additional preview pages of the 74HCT245D datasheet.

74HCT245D Product details

Description

Octal Bus Transceiver 2. General The 74HCT245D is high speed CMOS OCTAL BUS TRANSCEIVER fabricated with silicon gate C2MOS technology.It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.Its inputs are compatible with TTL, NMOS, and CMOS output voltage levels.It is intended for two-way asynchronous communication between data busses.The direction of data transmission is determined by the level of the DIR input.The enable

Features

(Note) (1) High speed: tpd = 11 ns (typ. ) at VCC = 5.5 V (2) Low power dissipation: ICC = 4.0 µA (max) at Ta = 25  (3) Compatible with TTL outputs: VIL = 0.8 V(max) VIH = 2.0 V(min) (4) Wide interfacing ability: LSTTL, NMOS, CMOS (5) Balanced propagation delays: tPLH ≈ tPHL Note: Do not apply a signal to any bus pins when it is in the output mode. Damage may result. All floating (high impedance) bus pins must have their input levels fixed by means of pull-up or pull-down resistors. 4. Packaging.
