74HC4049D - Hex Buffer

Toshiba

📥 Download Datasheet

74HC4049D Datasheet Preview — Preview of 74HC4049D PDF

Datasheet Details

Part number	74HC4049D
Manufacturer	Toshiba
File Size	226.17 KB
Description	Hex Buffer
Datasheet	74HC4049D-Toshiba.pdf

74HC4049D Product details

Description

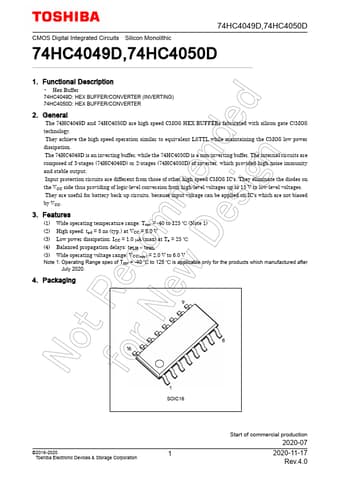

Hex Buffer 74HC4049D: HEX BUFFER/CONVERTER (INVERTING) 74HC4050D: HEX BUFFER/CONVERTER 2. General The 74HC4049D and 74HC4050D are high speed CMOS HEX BUFFERs fabricated with silicon gate C2MOS technology.They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.The 74HC4049D is an inverting buffer, while the 74HC4050D is a non-inverting buffer.The internal circuits are composed of 3-stages (74HC4049D) or 2-stages (74HC4050D) o

Features

(1) Wide operating temperature range: Topr = -40 to 125.
(Note 1) (2) High speed: tpd = 8 ns (typ. ) at VCC = 6.0 V (3) Low power dissipation: ICC = 1.0 µA (max) at Ta = 25.
(4) Balanced propagation delays: tPLH ≈ tPHL (5) Wide operating voltage range: VCC(opr) = 2.0 V to 6.0 V Note 1: Operating Range spec of Topr = -40.
to 125.
is applicable only for the products which manufactured after July 2020. 4. Packaging SOIC16 ©2016-2020 1 Toshiba Electronic Devices & Storage Corp.
