2SK421 - Silicon N-Channel MOSFET

Toshiba

📥 Download Datasheet

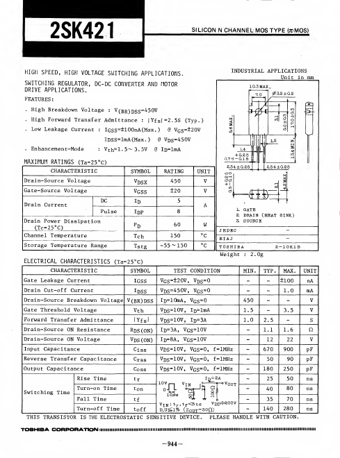

2SK421 Datasheet Preview — Preview of 2SK421 PDF

Datasheet Details

Part number	2SK421
Manufacturer	Toshiba
File Size	42.96 KB
Description	Silicon N-Channel MOSFET
Datasheet	2SK421-Toshiba.pdf

2SK421 Product details

Features

. High Breakdown Voltage : V(g R ) Dg S =450V . High Forward Transfer Admittance : ]Yf s |=2.5S (Typ. ) . Low Leakage Current : lGSS=±100nA(Max. ) @ Vgs =±20V . Enhancement-Mode lDSS=lmA(Max. ) @ Vds=450V : V t h=l-5~3.5V @ lD=lmA.
